Hot Dip Galvanised

Hot Dip Galvanised coating to over 40 microns for increased corrosion protection.

Need Assistance?
Contact our Engineering team now +44 (0)1435 866011 or

Product Information

Hot Dip Galvanised coating to over 40 microns for increased corrosion protection
Stainless Steel clips to reduce loss of protection when setting

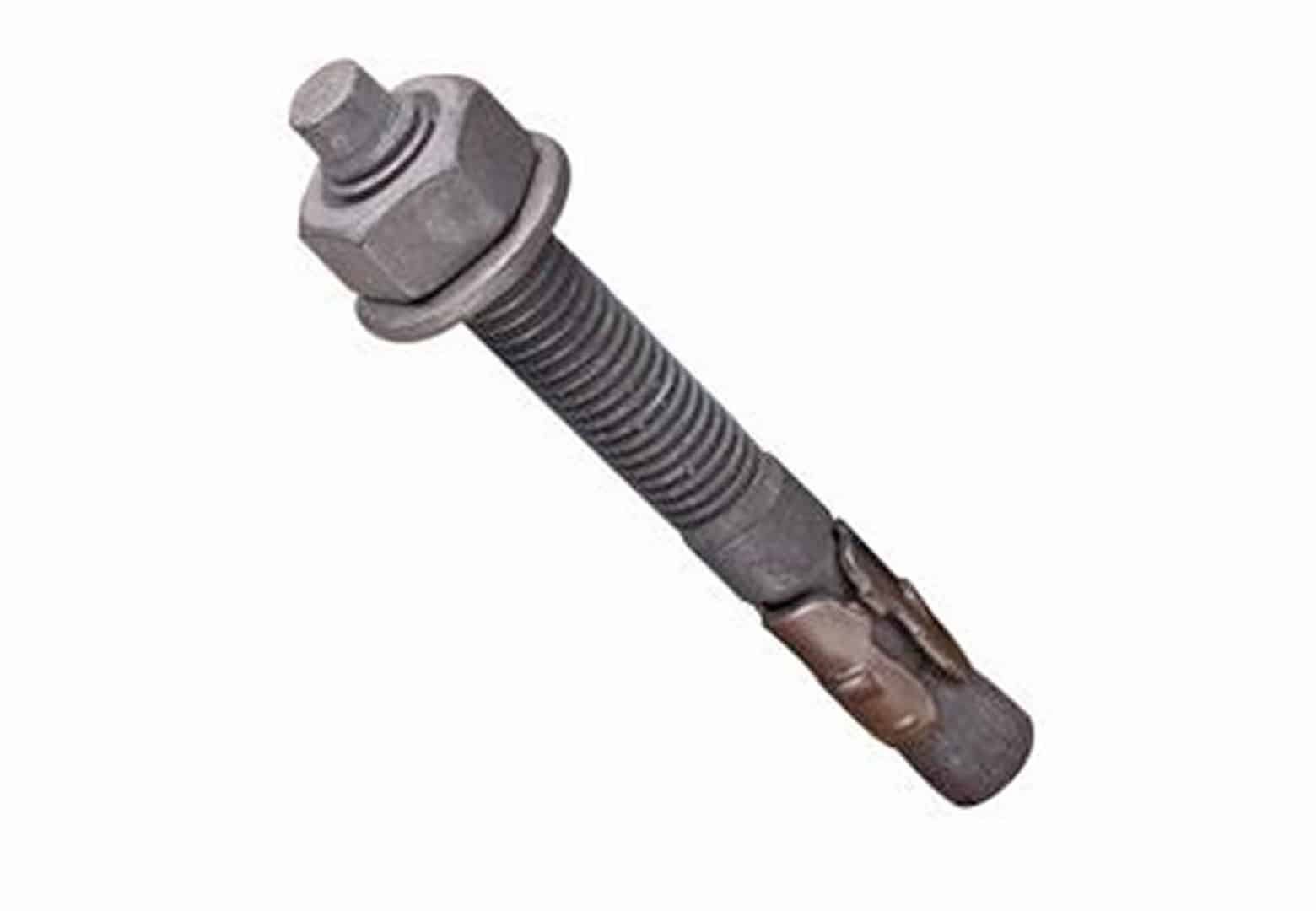

A Through Bolt is a torque controlled anchor, where the hole size is the same as the bolt. All our Through Bolts are packed with nut and washer pre-assembled
For loads for 30 N/mm2 concrete
Shear loads are for loads away from a free edge

With ISO9001: 2015 approval incorporating Design Status, our qualified engineering staff are able to offer a completely free of charge engineering service and are available to assist with part selection, custom design, application requirements, material selection and more.

Applications are discussed in-depth, first-off design data and drawings are submitted for approval to ensure our customers are provided with the correct design, first time. However, on those rare occasions when modifications are necessary, our no-tooling process and flexible manufacturing procedures means the production of prototypes is easily and economically achieved without onerous tooling charges and long lead times.

At TFC we realise that Quality runs through the entire business, not just our products. We have continually invested in the right people to provide the superior market knowledge and customer service.

Our supply chain partners, from manufacturers to logistics and information technology are carefully chosen to ÿt our commitment to quality

Quality assured since 1981
ISO 9001:2015
Aerospace AS9100C & AS9120A

All products are batch traceable and can be supplied in accordance with REACH, RoHs and Weee.

Certificates of Conformity are available on request and Full material certification is also available on many items.

Size	Anchor Hole Size	Anchor Length	Thread Length	Fastens Up To	Min Hole Depth	Embedment Depth (mm)	Fixture Clearance Hole (mm)	Centre Spacing (mm)	Edge Distance (mm)	Structure Thickness (mm)	Recommended Tensile Load kN	Recommended Shear Load kN	Recommended Tight Torque kN
