Slide-top Standoffs
SCFSKC slide-top standoffs are designed for a PCB or panel to be quickly attached and removed with a simple sliding motion. The slide-top standoffs provide advantages for reducing service time and eliminate the problems associated with loose hardware.
Need Assistance?
Contact our Engineering team now +44 (0)1435 866011 or
Product Information
SCFSKC slide-top standoffs are designed for a PCB or panel to be quickly attached and removed with a simple sliding motion. The slide-top standoffs provide advantages for reducing service time and eliminate the problems associated with loose hardware. Several slide-top standoffs can be used in conjunction with a self-clinching threaded standoff to lock the board in place.
Material: 300 Series Stainless steel
Finish: Zinc Passivated (ASTM A380)
Use in: Materials with Rockwell Hardness of B-70 or less

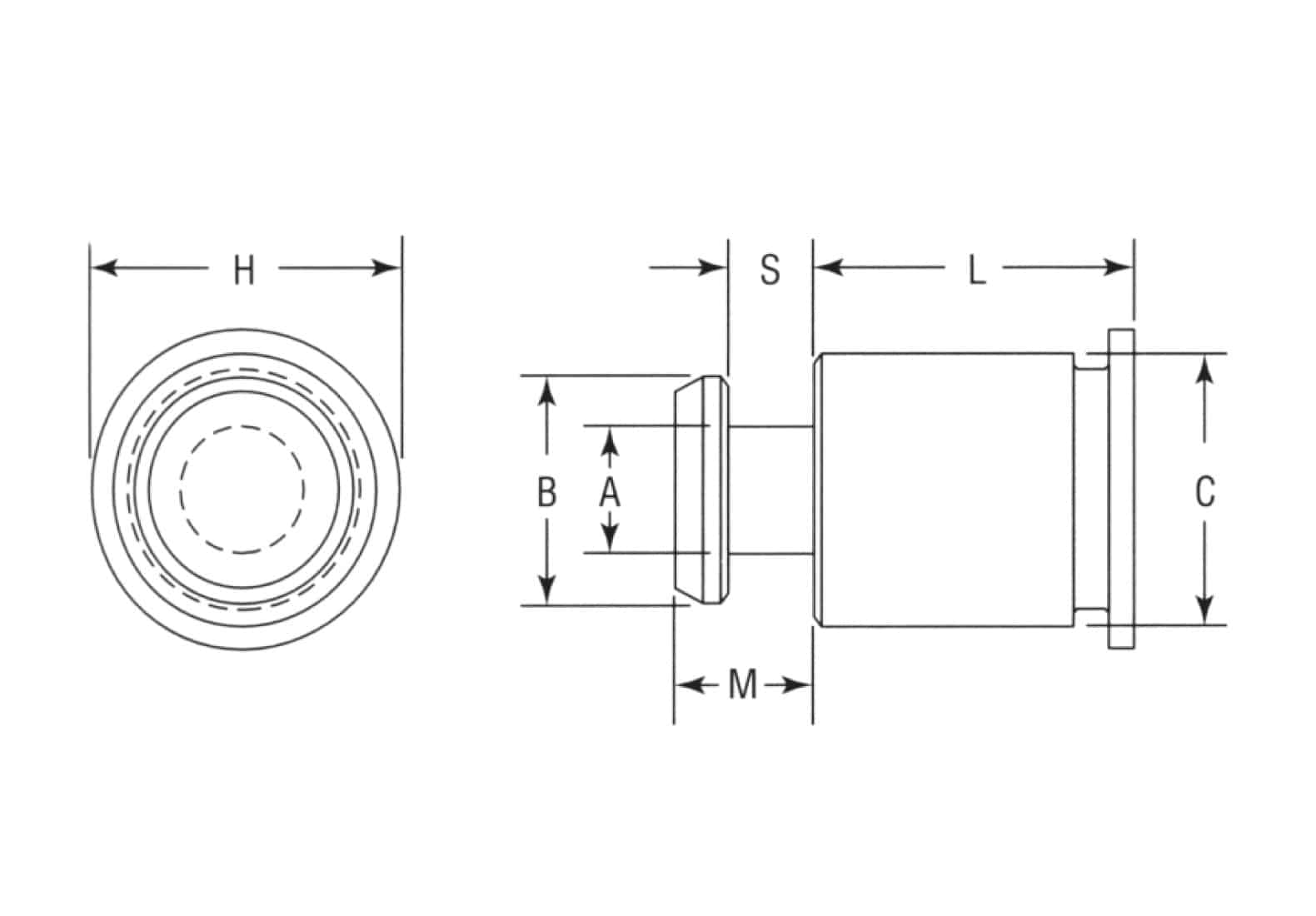

| Type | Body/ hole Code | L Length ±0.13 mm (length code in mm) | A±0.08 | B±0.08 | C max | S±0.08 | Mmax. | H nom. | Hole size+0.08-0.00 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | |||||||||
| SCFSKC | 61.5 | -6 | -8 | -10 | -12 | -147 | -16 | -18 | -20* | -22* | -25* | 2.5 | 4.5 | 5.38 | 1.72 | 2.75 | 6.35 | 5.5 |
*Non-standard, available on request
Tooling data:
| Type | Bottom panel | Top panel | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top mounting hole | Material | Thicknessrange | B min dim edge to centre line of hole | ||||||||||
| Bottom mounting hole +0.08 -0.00 | Min sheet thickness | C min | Location tolerance max | X nom | Y±0.08 | Z±0.08 | Amin | ||||||
| SCFSKC | 5.4 | 1.0 | 6.6 | ±0.13 | 1.5 | 5.0 | 3.0 | 3.75 | PCB or metal | 1.45 – 1.62 | 4.1 | ||
With ISO9001: 2015 approval incorporating Design Status, our qualified engineering staff are able to offer a completely free of charge engineering service and are available to assist with part selection, custom design, application requirements, material selection and more.
Applications are discussed in-depth, first-off design data and drawings are submitted for approval to ensure our customers are provided with the correct design, first time. However, on those rare occasions when modifications are necessary, our no-tooling process and flexible manufacturing procedures means the production of prototypes is easily and economically achieved without onerous tooling charges and long lead times.
At TFC we realise that Quality runs through the entire business, not just our products. We have continually invested in the right people to provide the superior market knowledge and customer service.
Our supply chain partners, from manufacturers to logistics and information technology are carefully chosen to ÿt our commitment to quality
Quality assured since 1981
ISO 9001:2015
Aerospace AS9100C & AS9120A
All products are batch traceable and can be supplied in accordance with REACH, RoHs and Weee.
Certificates of Conformity are available on request and Full material certification is also available on many items.
