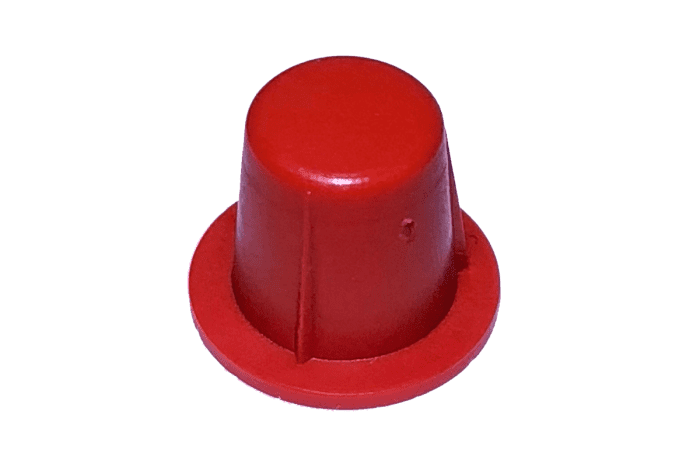

Protection Caps

Protects against damage, dirt, obstruction, moisture and corrosion during transportation and storage.

Need Assistance?
Contact our Engineering team now +44 (0)1435 866011 or

Enquire about this product

Product Information

Protects against damage, dirt, obstruction, moisture and corrosion during transportation and storage
Use both internally and externally
Enhances your product’s image
Versatile range of more than 40 standard sizes

Material: Soft Polyethylene
Colour: Red

With ISO9001: 2015 approval incorporating Design Status, our qualified engineering staff are able to offer a completely free of charge engineering service and are available to assist with part selection, custom design, application requirements, material selection and more.

Applications are discussed in-depth, first-off design data and drawings are submitted for approval to ensure our customers are provided with the correct design, first time. However, on those rare occasions when modifications are necessary, our no-tooling process and flexible manufacturing procedures means the production of prototypes is easily and economically achieved without onerous tooling charges and long lead times.

At TFC we realise that Quality runs through the entire business, not just our products. We have continually invested in the right people to provide the superior market knowledge and customer service.

Our supply chain partners, from manufacturers to logistics and information technology are carefully chosen to ÿt our commitment to quality

Quality assured since 1981
ISO 9001:2015
Aerospace AS9100C & AS9120A

All products are batch traceable and can be supplied in accordance with REACH, RoHs and Weee.

Certificates of Conformity are available on request and Full material certification is also available on many items.

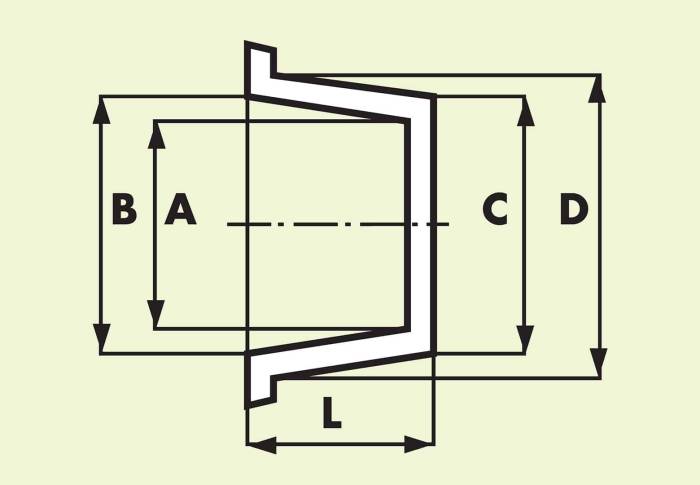

Part No	A	B	C	D	L
P7010000	1.5	3	3	4.5	10.3
P7010001	2.7	4.2	4	5.5	10
P7010002	4.4	6	6	7.5	10.3
P7010003	6.2	7.5	7.5	9.3	9.6
P7010004	7.6	9.2	9.5	10.7	10.3
P7010005	9	10.5	10.5	12	9.8
P7010006	10.1	12.2	11.8	13.3	11.5
P7010007	11.8	14.3	13.3	15.5	12.8
P7010008	14	16.2	16	17.5	12.5
P7010009	14.3	15.4	16.4	17.2	5.6
P7010010	15.2	18	16.7	19.2	12.7
P7010011	17.2	20.1	18.6	21.1	14.8
P7010012	18.6	20.7	20.3	22.5	16.7
P7010013	19.2	21.5	20.7	23	14.7
P7010014	20.8	23	22.5	24.2	14.7
P7010015	23	25.5	25	27.5	15.2
P7010016	24.4	27.3	26.2	28.5	16.4
P7010017	25.4	29.5	27.2	30.1	16.4
P7010018	28.5	32.1	30.7	33.6	16.4
P7010019	30.3	33.5	31.8	34.5	17.2
P7010020	31.4	35	33.4	36.8	18.3
P7010021	35.8	39	37.8	41	18.3
P7010022	38.3	41.5	39.8	42.8	20.3
P7010023	40.4	43.8	42	45	20.3
P7010024	42.5	45.5	44.2	47	20.3
P7010025	43.4	47.5	45.2	49	25.6
P7010026	46	51.5	48.2	52.5	22.5
P7010027	52	57.5	54	58	22.3
P7010028	57	59.5	58.5	61	15
P7010029	57.6	63	59.1	64	24.2
P7010030	59.2	64.5	61	65	30
P7010031	69	73	71.3	74	25
P7010032	72.2	76	74	77.8	25
P7010033	77.2	80.2	79	82	15
P7010034	81.5	85.5	83.5	87	24.8
P7010035	87	91	89	93	25
P7010036	97	101	99	103	24.5
P7010037	106.8	111	109	113.2	24.5
P7010038	121.8	126	124	128.2	24.5
P7010039	144.8	149	146	151	24.5
P7010040	156.2	161	159	163.8	24.5
