Hex Head Set Screws – Brass – Metric – DIN 933
Need Assistance?
Contact our Engineering team now +44 (0)1435 866011 or
Product Information
The fully threaded DIN 933 or ISO 4017 should not be confused with it™s DIN 931 equivalent which is only partly threaded. A standard spanner or ratchet is typically used to fit this product. Used for decades on all types of assembly. As with the DIN 931 hex bolt, the hex drive allows a higher torque to be applied.

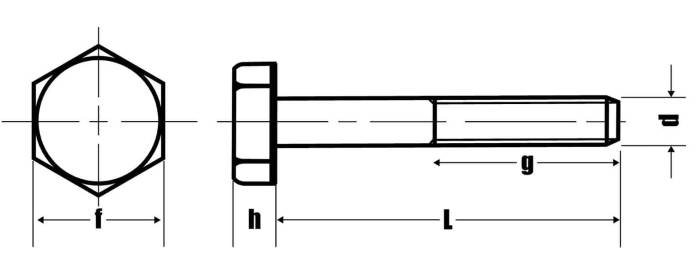

Dimensions: Millimetres
(mm)Material: BrassDIN
933ISO: 4017ANSI: B18.2.3.1M
| d | l | p | h | f |
|---|---|---|---|---|
| M3 | 25 | 0.5 | 2 | 5.5 |
| M4 | 12 | 0.7 | 2.8 | 7 |
| M4 | 16 | 0.7 | 2.8 | 7 |
| M4 | 20 | 0.7 | 2.8 | 7 |
| M4 | 25 | 0.7 | 2.8 | 7 |
| M4 | 40 | 0.7 | 2.8 | 7 |
| M4 | 50 | 0.7 | 2.8 | 7 |
| M5 | 12 | 0.8 | 3.5 | 8 |
| M5 | 16 | 0.8 | 3.5 | 8 |
| M5 | 20 | 0.8 | 3.5 | 8 |
| M5 | 25 | 0.8 | 3.5 | 8 |
| M5 | 30 | 0.8 | 3.5 | 8 |
| M5 | 40 | 0.8 | 3.5 | 8 |
| M5 | 50 | 0.8 | 3.5 | 8 |
| M6 | 8 | 1 | 4 | 10 |
| M6 | 10 | 1 | 4 | 10 |
| M6 | 12 | 1 | 4 | 10 |
| M6 | 16 | 1 | 4 | 10 |
| M6 | 20 | 1 | 4 | 10 |
| M6 | 25 | 1 | 4 | 10 |
| M6 | 30 | 1 | 4 | 10 |
| M6 | 40 | 1 | 4 | 10 |
| M6 | 50 | 1 | 4 | 10 |
| M6 | 60 | 1 | 4 | 10 |
| M6 | 75 | 1 | 4 | 10 |
| M8 | 12 | 1.25 | 5.3 | 13 |
| M8 | 16 | 1.25 | 5.3 | 13 |
| M8 | 20 | 1.25 | 5.3 | 13 |
| M8 | 25 | 1.25 | 5.3 | 13 |
| M8 | 30 | 1.25 | 5.3 | 13 |
| M8 | 35 | 1.25 | 5.3 | 13 |
| M8 | 40 | 1.25 | 5.3 | 13 |
| M8 | 50 | 1.25 | 5.3 | 13 |
| M8 | 75 | 1.25 | 5.3 | 13 |
| M10 | 16 | 1.5 | 6.4 | 17 |
| M10 | 20 | 1.5 | 6.4 | 17 |
| M10 | 25 | 1.5 | 6.4 | 17 |
| M10 | 30 | 1.5 | 6.4 | 17 |
| M10 | 35 | 1.5 | 6.4 | 17 |
| M10 | 40 | 1.5 | 6.4 | 17 |
| M10 | 50 | 1.5 | 6.4 | 17 |
| M10 | 60 | 1.5 | 6.4 | 17 |
| M10 | 70 | 1.5 | 6.4 | 17 |
| M10 | 75 | 1.5 | 6.4 | 17 |
| M12 | 20 | 1.75 | 7.5 | 19 |
| M12 | 25 | 1.75 | 7.5 | 19 |
| M12 | 30 | 1.75 | 7.5 | 19 |
| M12 | 35 | 1.75 | 7.5 | 19 |
| M12 | 40 | 1.75 | 7.5 | 19 |
| M12 | 45 | 1.75 | 7.5 | 19 |
| M12 | 50 | 1.75 | 7.5 | 19 |
| M12 | 60 | 1.75 | 7.5 | 19 |
| M12 | 75 | 1.75 | 7.5 | 19 |
| M16 | 40 | 2 | 10 | 24 |
| M16 | 50 | 2 | 10 | 24 |
| M16 | 60 | 2 | 10 | 24 |
| M16 | 70 | 2 | 10 | 24 |
| M16 | 75 | 2 | 10 | 24 |
